Visualising exposure-response models with erplots

Source: vignettes/articles/erplots-integration.Rmd
erplots-integration.Rmd

The erplots package provides a mini-language for building publication-ready exposure-response plots and visual predictive checks. It is model-agnostic: any package that implements three generics — er_predict(), er_simulate(), and er_summary() — can drive the plot pipeline. emaxnls registers methods for both emaxnls and emaxlogistic objects. They are picked up automatically when erplots is loaded, so no extra configuration is needed beyond library(erplots).

This article assumes familiarity with emax_nls() and emax_logistic(); if you are new to those, start with the continuous and binary model-fitting articles. For a complete treatment of what erplots can do — theming, custom style builders, the full option surface of each layer function — see the erplots documentation.

Exposure-response plots for continuous models

We start by fitting a simple emax_nls() model on the bundled emax_df dataset:

mod <- emax_nls(
  structural_model = rsp_1 ~ exp_1,
  covariate_model  = list(E0 ~ 1, Emax ~ 1, logEC50 ~ 1),
  data             = emax_df
)

The erplots pipeline opens with er_plot(), which declares the dataset and the exposure and response variables. Layers are added with er_plot_add_*() calls, and the plot is drawn by calling plot():

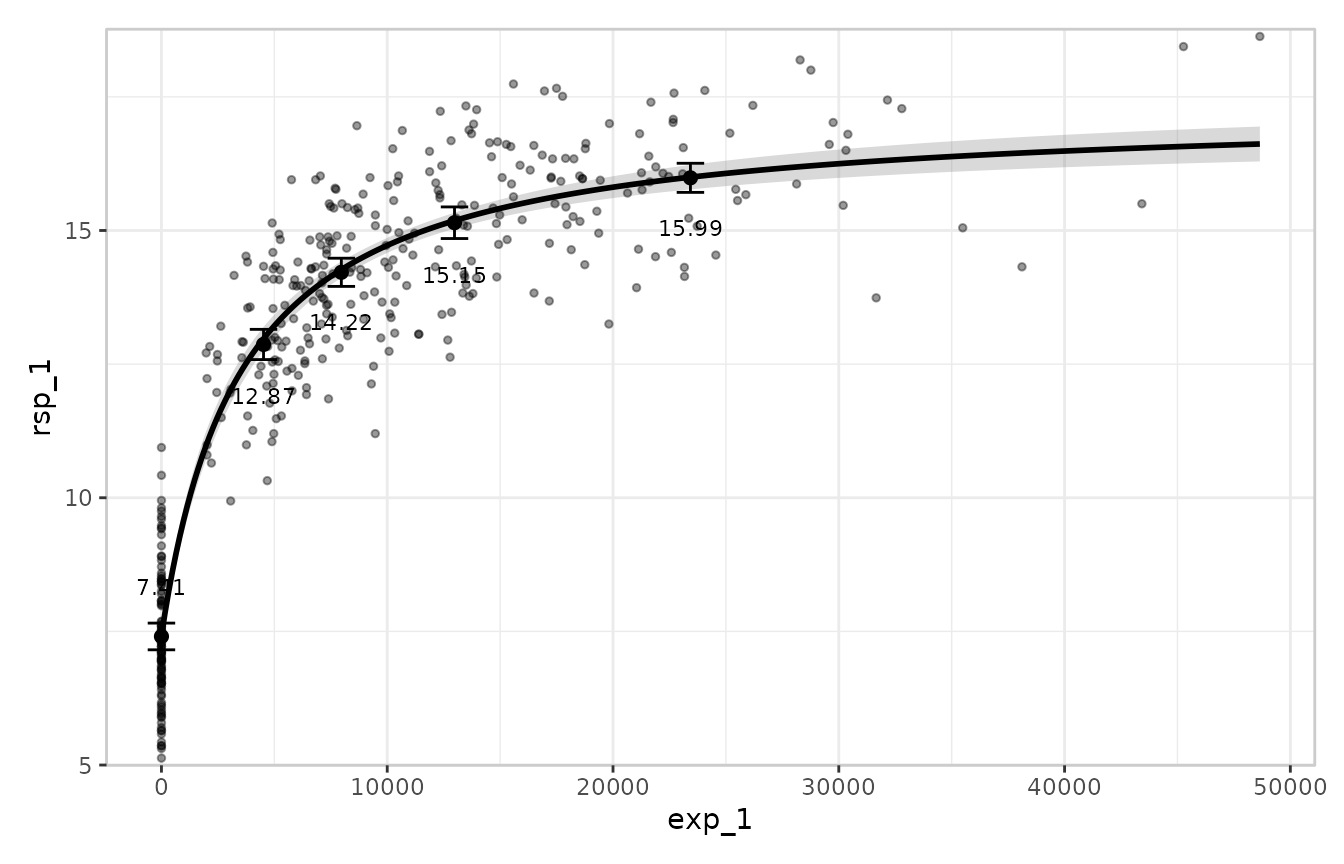

emax_df |>
  er_plot(exp_1, rsp_1) |>
  er_plot_add_model(mod) |>
  er_plot_add_quantiles() |>
  er_plot_add_data() |>
  plot()

The three layers here are:

  • Model layer (er_plot_add_model()): a credible band for the Emax curve, built by sampling many parameter vectors from the estimated covariance matrix and evaluating the model at each draw.
  • Quantile layer (er_plot_add_quantiles()): the observed data binned by exposure quantile, with the mean and a confidence interval shown per bin.
  • Data layer (er_plot_add_data()): the raw observations at their actual exposure-response coordinates.

The summary layer

er_plot_add_summary() annotates the plot with a model summary. For most model types the default style headlines the p-value for the primary drug-effect term. Emax models have no single privileged coefficient for that role, so the right style here is er_style_summary_coefficients, which instead shows one line per structural parameter:

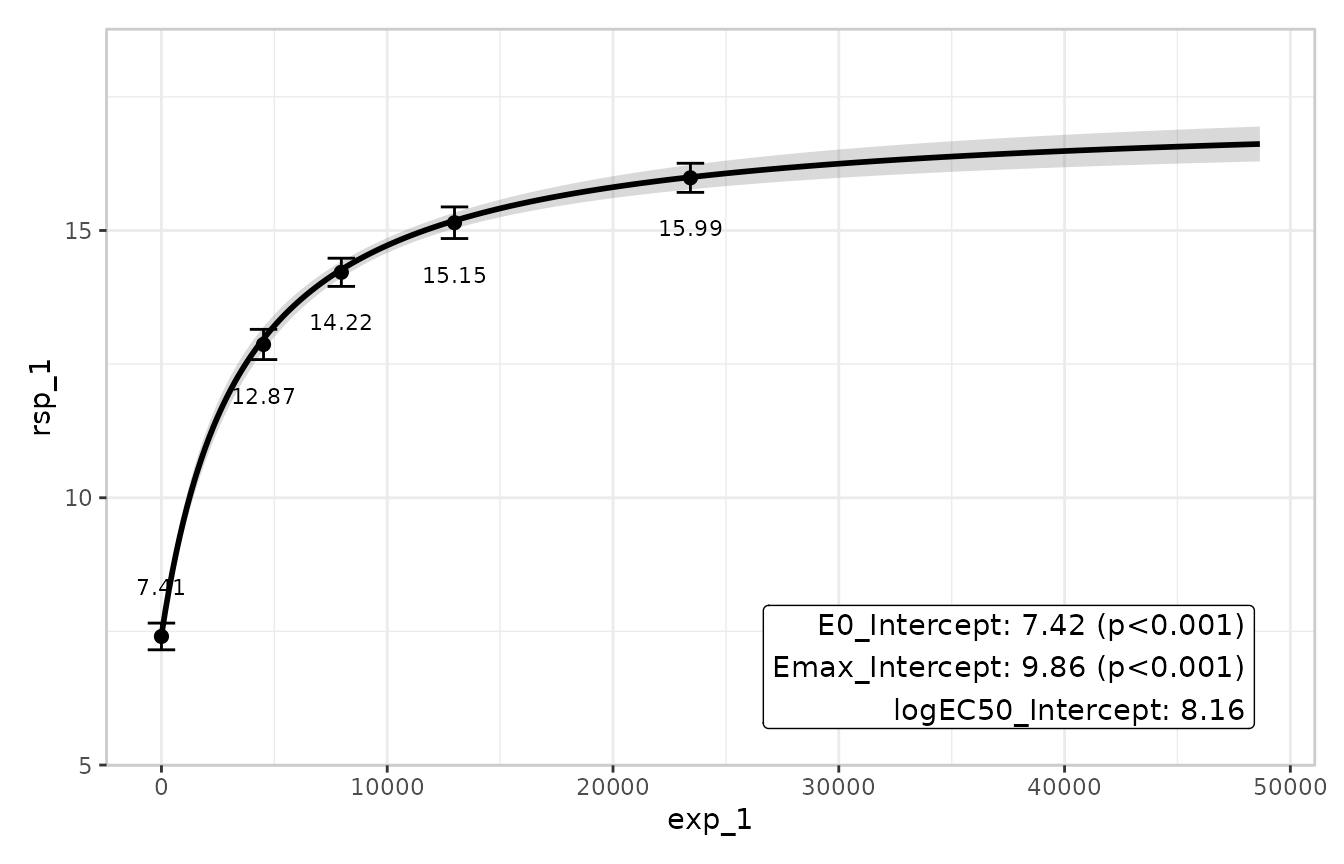

emax_df |>
  er_plot(exp_1, rsp_1) |>
  er_plot_add_model(mod) |>
  er_plot_add_summary(model = mod, style = er_style_summary_coefficients) |>
  er_plot_add_quantiles() |>
  plot()

Stratification

Passing a discrete variable to stratify_by adds colour across all layers, letting you inspect whether the model’s predictions track the observed data separately within each level of that variable. A model that includes the stratification variable as a covariate will produce distinct prediction bands per stratum; a model that omits it will produce the same band for all strata (which is itself informative — it means the model is not accounting for that grouping). The erplots binary responses article has a full worked stratification example including how to suppress stratification for individual layers with keep_strata = FALSE.

Exposure-response plots for binary models

The pipeline works identically for emaxlogistic objects. The emaxlogistic class inherits its er_predict(), er_simulate(), and er_summary() methods from emaxnls via S3 inheritance, with internal branches to keep predictions on the probability scale and to report r_squared = NA in the summary layer where it would be meaningless. From the calling code there is nothing extra to do:

mod_b <- emax_logistic(
  structural_model = rsp_2 ~ exp_1,
  covariate_model  = list(E0 ~ 1, Emax ~ 1, logEC50 ~ 1),
  data             = emax_df
)

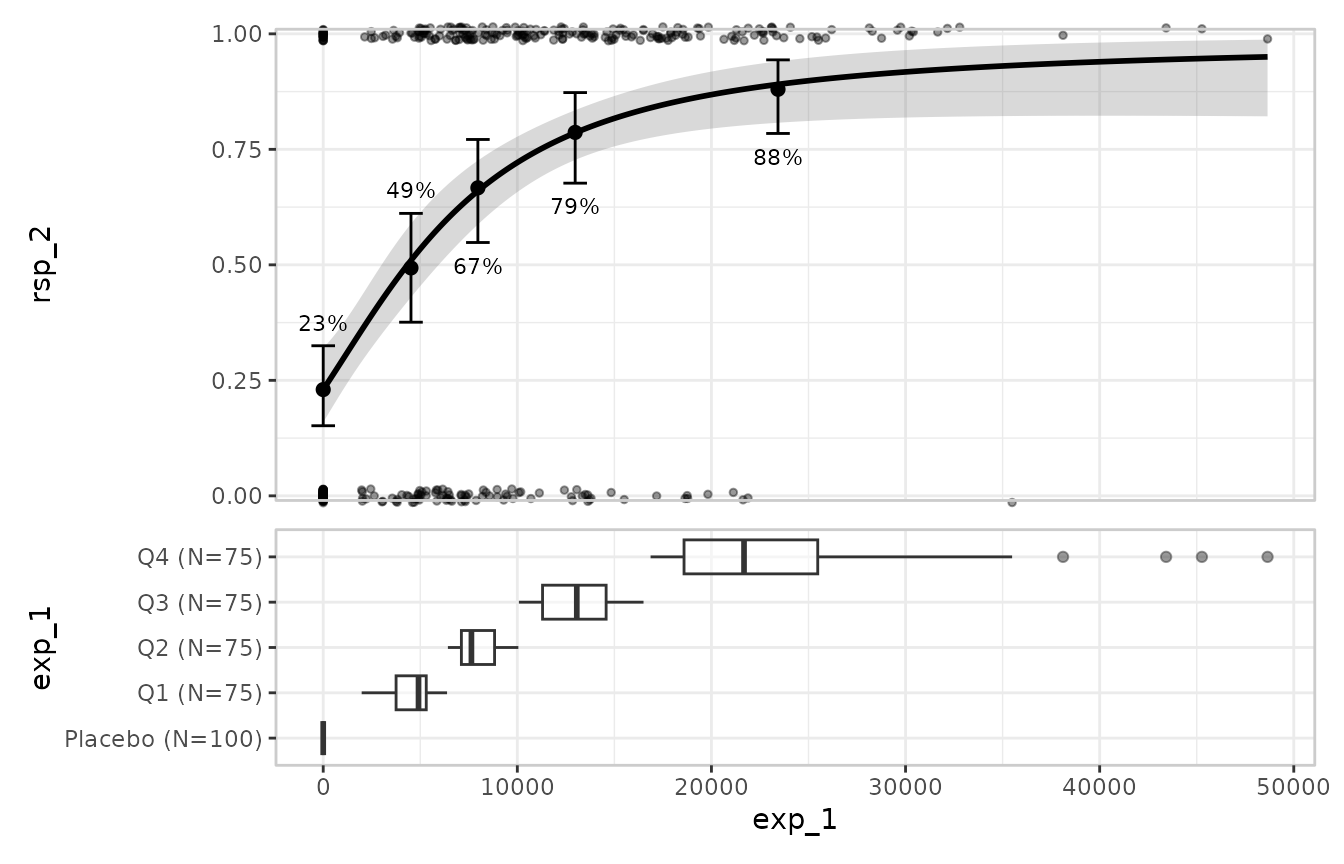

emax_df |>
  er_plot(exp_1, rsp_2) |>
  er_plot_add_model(mod_b) |>
  er_plot_add_quantiles() |>
  er_plot_add_data() |>
  er_plot_add_groups(group_by = exp_1) |>
  plot()

er_plot() auto-detects the binary response from the values of rsp_2 (all in {0,1}\{0, 1\}) and automatically switches to Clopper-Pearson confidence intervals for the quantile layer and a jitter-style display for the data layer.

er_plot_add_groups() introduces the group layer, which is structurally distinct from the other layers. Rather than overlaying content within the main panel, it appends a separate panel below the plot showing the marginal distribution of the exposure variable. Unlike the model, summary, quantile, and data layers — which are singletons, so a second call replaces the first — the group layer is additive: each er_plot_add_groups() call adds one new panel, and you can stack several to display different groupings. This makes it easy to see where observations are concentrated along the exposure axis and to judge whether the quantile bins are adequately covering the data.

Visual predictive checks

A visual predictive check (VPC) compares what a model predicts against what was actually observed, bin by bin across the exposure range, making systematic misfit easy to see. The er_vpc() mini-language generates VPCs from the same er_predict() and er_simulate() generics.

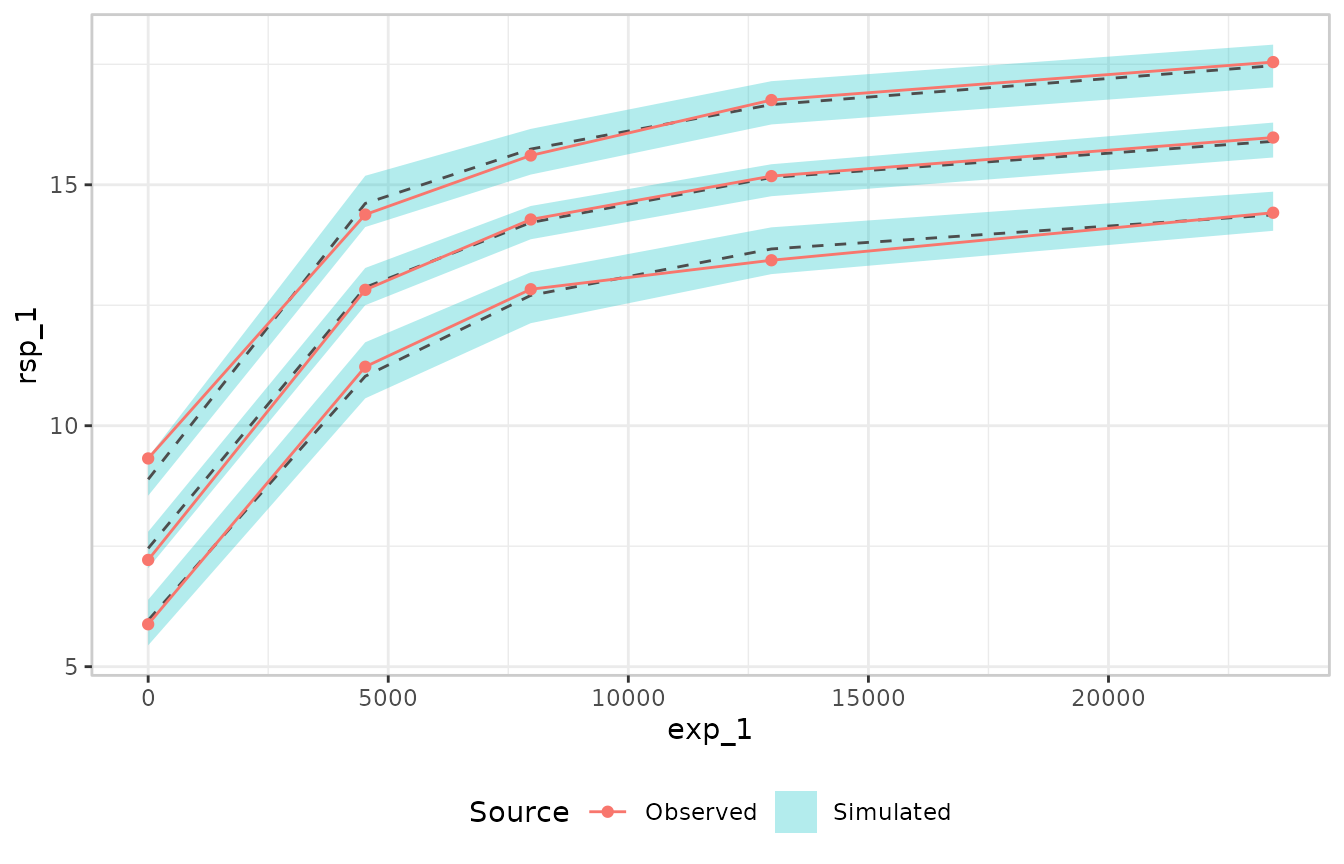

For a continuous response, the most informative presentation compares observed and simulated quantile distributions rather than just means. Connected lines trace the observed percentiles and shaded ribbons show the corresponding simulated percentile ranges:

emax_df |>
  er_vpc(exposure = exp_1, response = rsp_1, response_type = "continuous") |>
  er_vpc_add_observed(style = er_style_vpc_observed_quantile_line) |>
  er_vpc_add_simulated(
    model = mod,
    seed  = 7438,
    style = er_style_vpc_simulated_quantile_ribbon
  ) |>
  plot()

The lines show the 10th, 50th, and 90th percentiles of the observed data in each exposure bin; the ribbons show the same percentiles from the simulated replicates. A well-fitting model will have its ribbons closely enclosing the observed lines; systematic departures — ribbons consistently above or below the lines — suggest that the model is misspecified in some way.

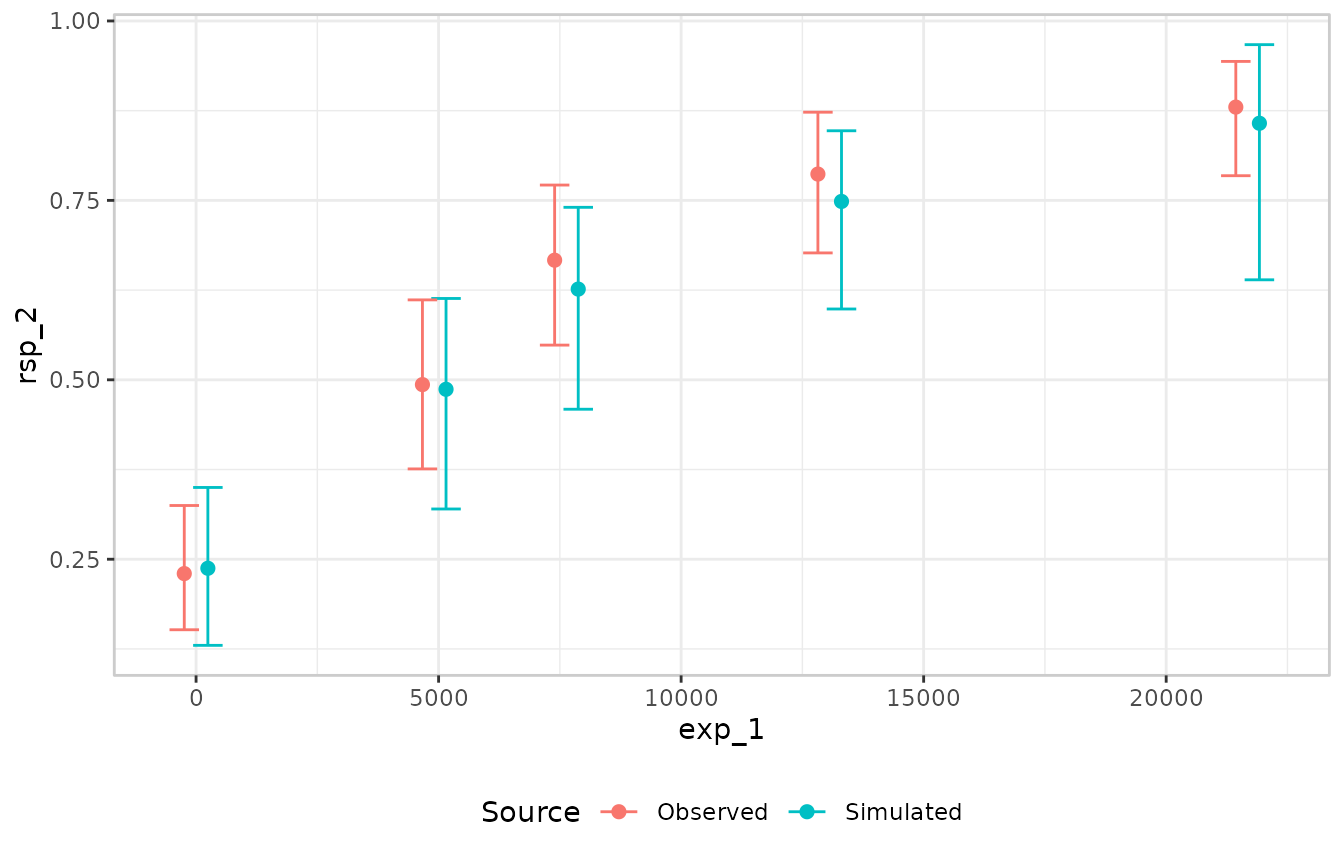

The VPC works the same way for binary models. er_plot() auto-detects the response type, so passing mod_b (the emaxlogistic object fitted above) to er_vpc_add_simulated() is sufficient:

emax_df |>
  er_vpc(exposure = exp_1, response = rsp_2) |>
  er_vpc_add_observed(dodge = -0.005, errorbar_width = 0.0125) |>
  er_vpc_add_simulated(model = mod_b, seed = 7438,
                       dodge = 0.005, errorbar_width = 0.0125) |>
  plot()

For a binary response the default style — mean response rate with a Clopper-Pearson interval, for both the observed and simulated layers — is generally the most appropriate choice, so no custom style functions are needed.
